JT14A/JT14B φ300 Digital Profile Projector
Model
JT14A/JT14BTime
2025-03-25Enterprise nature
View
Professional customer service online answers to solve the problems you encounter！
RELATED PRODUCTS
RELATED PRODUCTS
JT12A-B φ300 Digital
Model：JT12A-B
JT300 φ300 Digital P
Model：JT300
Detailed Introduction
Features：
Elegant Appearance & Compact Design
- The instrument boasts an aesthetic exterior, compact structure, and user-friendly operation.
High-performance Halogen Lighting
- Equipped with a bright, long-lasting halogen lamp for clear imaging and uniform illumination.
Dual-mode Transmitted Lighting
- Two adjustable brightness levels (high/low) accommodate diverse measurement requirements.
Multi-stage Worktable Options
- Three travel-range stages available to match measured workpiece dimensions.
Extended Z-axis Focusing
- Projection column elevation mechanism enables large vertical focusing travel.
Adaptive Condenser Adjustment
- Manually adjustable condenser lens synchronizes with magnification changes.
Precision Turret System
- Rotating turret holds three objectives for swift, accurate magnification switching.
Smart Connectivity
- Built-in RS232 interface supports powerful 2D measurement software.

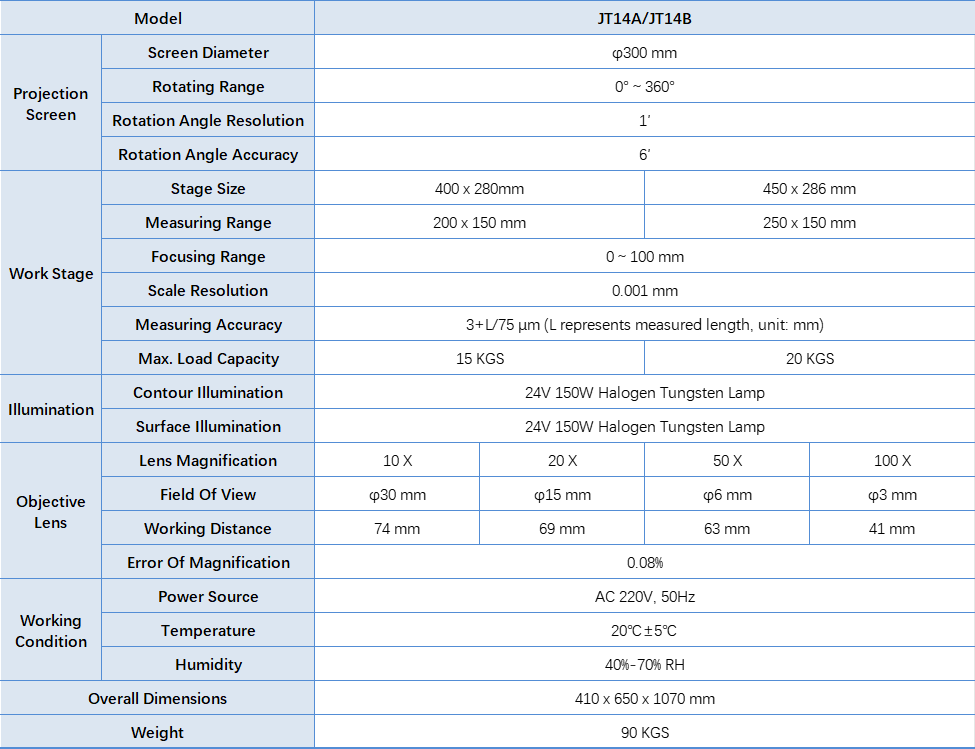

Technical Specifications：
